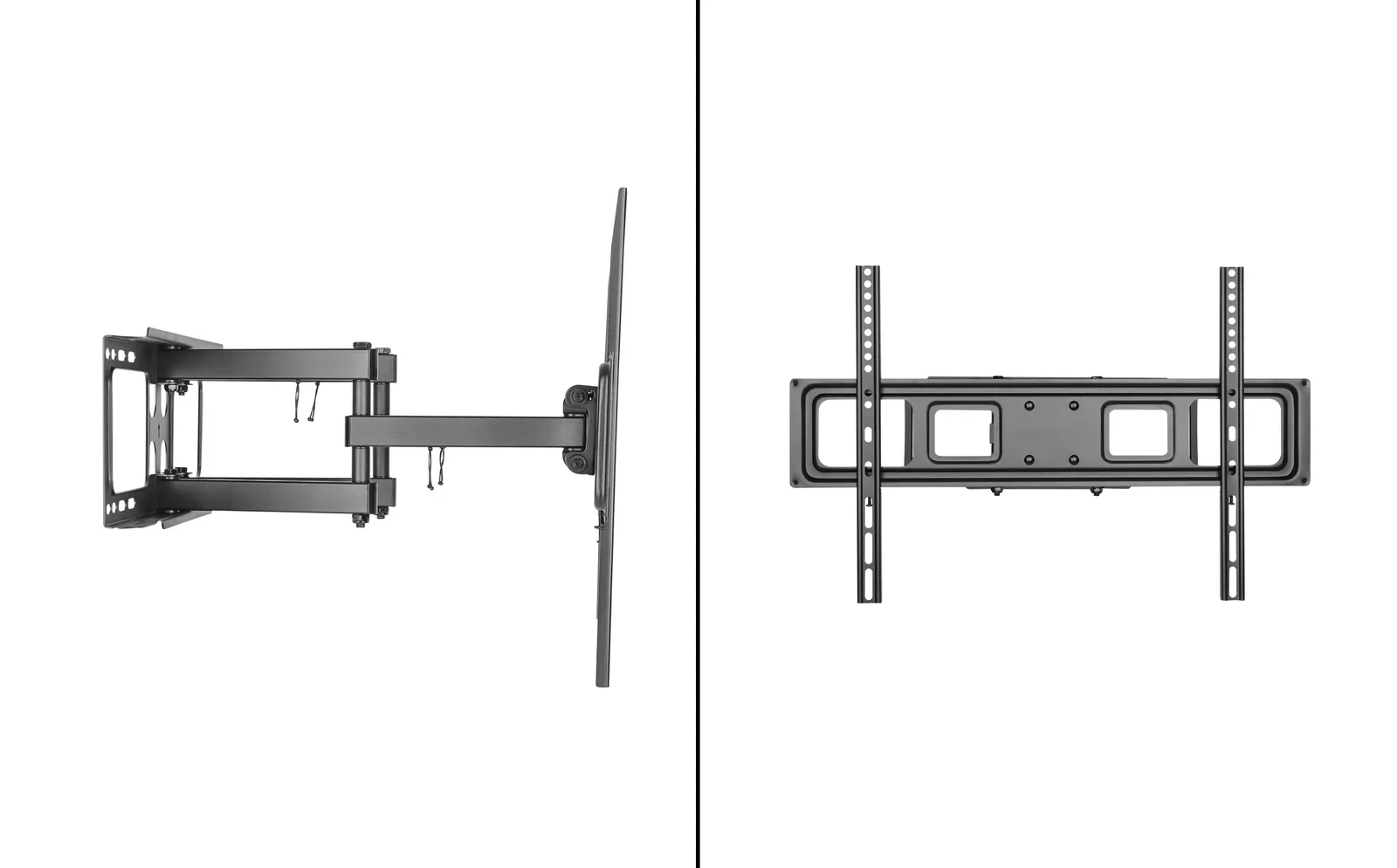

SkillTech - SH 646P (Suitable For Most 37" ~ 70" Screens) - Steel Full-Motion Tv Wall Mount

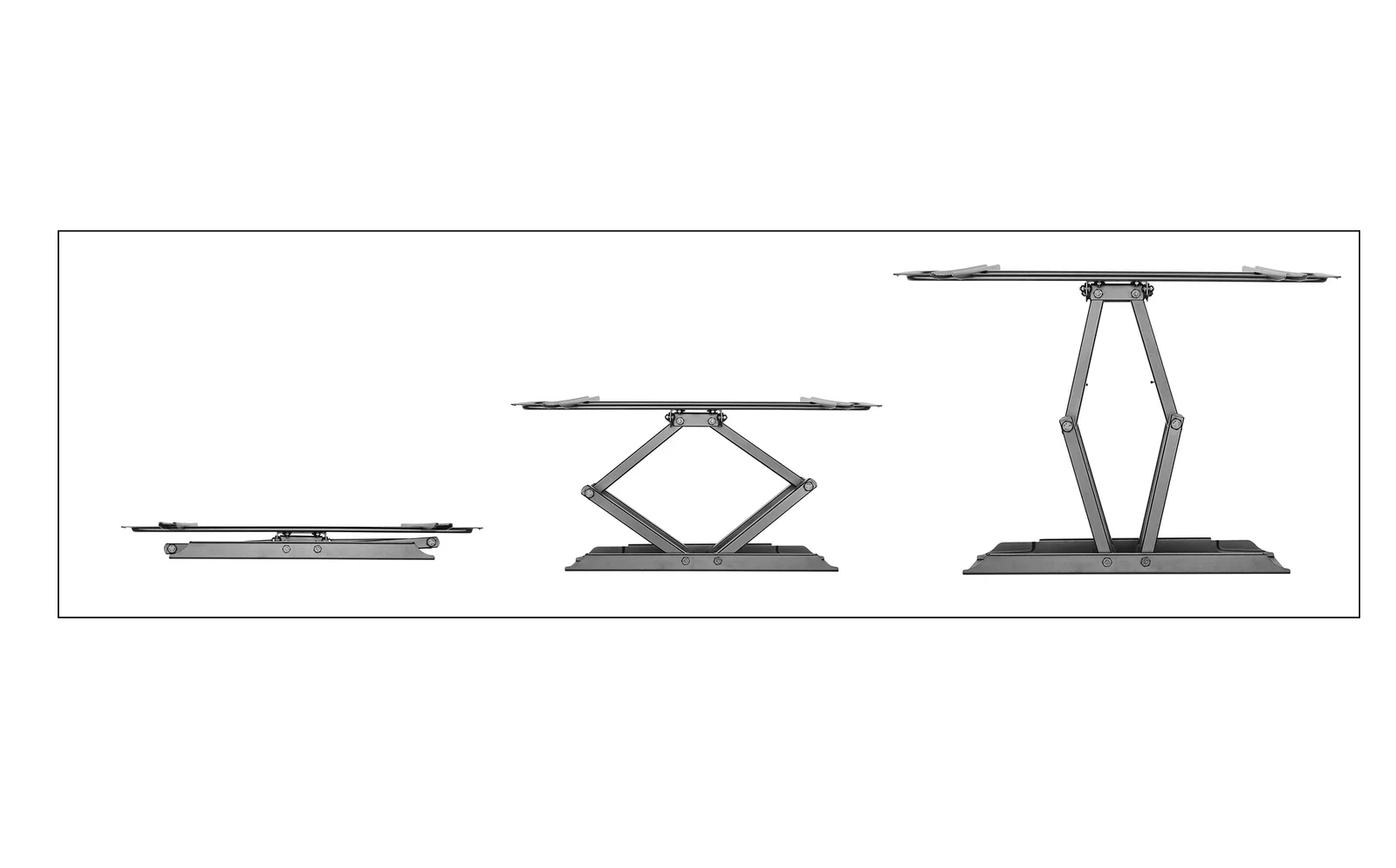

The SH 646P super economy full-motion mount accommodates most 37"-70" flat-panel TVs up to 40kg/88lbs. This mount extends out 404mm from the wall and allows full-motion capabilities. Full motion allows maximum flexibility - tilts and swivels your TV for easy viewing from any seat in a room. Its post-installation leveling adjustment ensures the TV is perfectly positioned on the wall. An integrated cable management system keeps cables organized and protected.
| Product Category: | Full-Motion TV Wall Mount |
| Rank: | Economy |
| Material: | Steel |
| Pipe Size: | 30x20x1.5 mm (1.2"x0.79"x0.059" ) |
| Surface Finish: | Powder Coating |
| Color: | Fine Texture Black |
| Dimensions: | 464x655x420mm (18.3"x25.8"x16.5") |
| Fit Screen Size: | Suitable For Most 37" ~ 70" Screen |
| Fit Curved TV: | Yes |
| Mounting Hole Pattern : | VESA & Universal |
| VESA Compatible: | 200x200,300x300,400x200,400x400,600x400 |
| Max. VESA: | 604x404mm |
| Weight Capacity: | 40kg (88lbs) |
| Strength Tested: | 2 Times Approved |
| Profile: | 53~464mm (2.1"~18.3") |
| Tilt Range: | +5° ~ -15° |
| Swivel Range: | +60° ~ -60° |
| Screen Level: | +3° ~ -3° |
| Installation: | Double Stud(406mm/450mm),Solid Wall |
| Panel Type: | Detachable Panel |
Download Datasheet
Download Sketch
Product Information
Product Information
Shipping & Returns
Shipping & Returns
SkillTech - SH 646P (Suitable For Most 37" ~ 70" Screens) - Steel Full-Motion Tv Wall Mount
SkillTech - SH 646P (Suitable For Most 37" ~ 70" Screens) - Steel Full-Motion Tv Wall Mount
The SH 646P super economy full-motion mount accommodates most 37"-70" flat-panel TVs up to 40kg/88lbs. This mount extends out 404mm from the wall and allows full-motion capabilities. Full motion allows maximum flexibility - tilts and swivels your TV for easy viewing from any seat in a room. Its post-installation leveling adjustment ensures the TV is perfectly positioned on the wall. An integrated cable management system keeps cables organized and protected.
| Product Category: | Full-Motion TV Wall Mount |
| Rank: | Economy |
| Material: | Steel |
| Pipe Size: | 30x20x1.5 mm (1.2"x0.79"x0.059" ) |
| Surface Finish: | Powder Coating |
| Color: | Fine Texture Black |
| Dimensions: | 464x655x420mm (18.3"x25.8"x16.5") |
| Fit Screen Size: | Suitable For Most 37" ~ 70" Screen |
| Fit Curved TV: | Yes |
| Mounting Hole Pattern : | VESA & Universal |
| VESA Compatible: | 200x200,300x300,400x200,400x400,600x400 |
| Max. VESA: | 604x404mm |
| Weight Capacity: | 40kg (88lbs) |
| Strength Tested: | 2 Times Approved |
| Profile: | 53~464mm (2.1"~18.3") |
| Tilt Range: | +5° ~ -15° |
| Swivel Range: | +60° ~ -60° |
| Screen Level: | +3° ~ -3° |
| Installation: | Double Stud(406mm/450mm),Solid Wall |
| Panel Type: | Detachable Panel |
Download Datasheet
Download Sketch
Original: $35.44
-70%$35.44
$10.63Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The SH 646P super economy full-motion mount accommodates most 37"-70" flat-panel TVs up to 40kg/88lbs. This mount extends out 404mm from the wall and allows full-motion capabilities. Full motion allows maximum flexibility - tilts and swivels your TV for easy viewing from any seat in a room. Its post-installation leveling adjustment ensures the TV is perfectly positioned on the wall. An integrated cable management system keeps cables organized and protected.
| Product Category: | Full-Motion TV Wall Mount |
| Rank: | Economy |
| Material: | Steel |
| Pipe Size: | 30x20x1.5 mm (1.2"x0.79"x0.059" ) |
| Surface Finish: | Powder Coating |
| Color: | Fine Texture Black |
| Dimensions: | 464x655x420mm (18.3"x25.8"x16.5") |
| Fit Screen Size: | Suitable For Most 37" ~ 70" Screen |
| Fit Curved TV: | Yes |
| Mounting Hole Pattern : | VESA & Universal |
| VESA Compatible: | 200x200,300x300,400x200,400x400,600x400 |
| Max. VESA: | 604x404mm |
| Weight Capacity: | 40kg (88lbs) |
| Strength Tested: | 2 Times Approved |
| Profile: | 53~464mm (2.1"~18.3") |
| Tilt Range: | +5° ~ -15° |
| Swivel Range: | +60° ~ -60° |
| Screen Level: | +3° ~ -3° |
| Installation: | Double Stud(406mm/450mm),Solid Wall |
| Panel Type: | Detachable Panel |
